KETV01, KETV02, KETV03, KETV04, KETV06, KETV08, KETV10, KETV12,

• 1 phone system

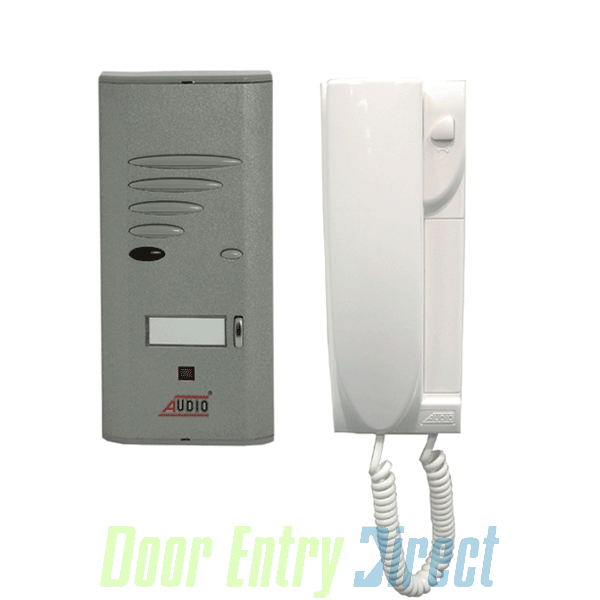

• The SDK audio door entry kit is designed for simple one to one installation. That is one call button calling one telephone.
• The equipment is functional and very competitively priced

Follow these links for useful additional information

• Data Sheet
• Wiring diagram
• Cable requirements



Training Notes

These kits are ideal for a variety of installations because of the following features.

• The panel is very shallow
  • It is ideal for surface mounting
  • The panel is hinged, making it very engineer friendly
  • The panel is protected from the rain and is suitable for fitting externally
  • This is NOT a Vandal Resistant panel, but it is robust and suitable for most applications


• The phone is an attractive white unit
  • The phone cord is a very flexible and suitable in situations with repetitive use (ie reception phone)
  • The power supply (provided with the kit) is suitable for power for the system and standard 12V AC lock releases.


• The connections are simple
  • Convertional 5 wire technology


Cable Requirements

• Power is provided to the system from a DIN rail power supply. This is normally installed near the fuse box.
• Only 5 wires are required between the telephone and the entrance panel for each telephone. 4 of these wires are common, the other is for the call tone.
• For further information about various locking arrangements please see the wiring diagram
